Brand Name : | JingLian |
Model Number : | ZWJ--1600B |
Certification : | IATF16949:2016 |
Payment Terms : | L/C, T/T |
Supply Ability : | 100 Sets/month |
Delivery Time : | 25 Days |

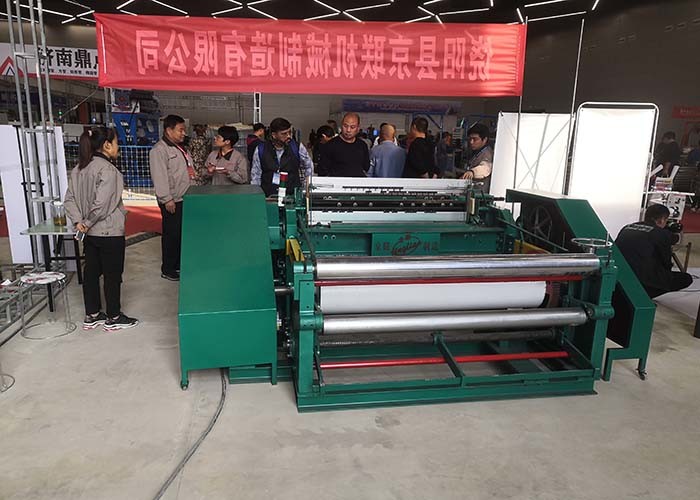

2.2 kw 1600mm Width Low Noice Shuttleless Weaving Machine For 40-400 mesh/inch
Summary
The light-duty metal wire net weaving machine is applicable for the industry of metal wire net weaving, and it can be used to weave mesh nets, microgroove nets and other nonmetal nets. The products weaved are widely used in various industries including petroleum, chemical industry, machinery, and aviation, etc.
Main features
Main Parameters:
TYPE | ZWJ-1300B | ZWJ-1600B | ZWJ-2100B |
MESH SIZE | 40-400mesh/inch | 40-400mesh/inch | 40-400mesh/inch |
WIRE DIAMETER | 0.025-0.200mm | 0.025-0.200mm | 0.025-0.200mm |
BEATING-UP FREQUENCY | 70 r/min | 70 r/min | 70 r/min |
MESH WIDTH | 1300mm | 1600mm | 2100mm |
MOTOR POWER | 2.2kw | 2.2kw | 2.2kw |
OVERALL SIZE | 2.6m*2.8m*1.4m | 2.6m*3.1m*1.4m | 2.6m*3.6m*1.4m |
Main components and specification
In the direction of the technical flow for weaving, it mainly consists of: take-up unit, weft beating-up unit, opening unit, and warp feeding unit, etc.
Operation
Forward | Inch | Stop | Reverse | Manual | Automatic |
О | О | О | О | О |
![]() |
