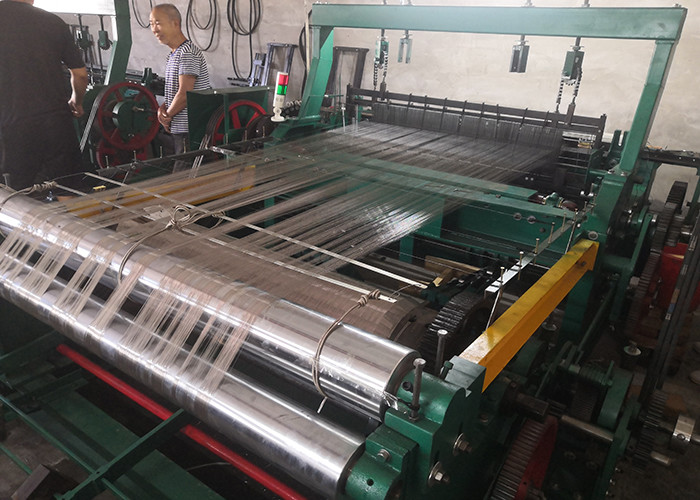

2000mm Shuttleless Plc Control Automatic Wire Mesh Machine For Stainless Steel Wire Mesh

NOTE : we are professional heavy duty & heavy duty big machine for coarse mesh , thick wire and we are professional design machine based on mesh sample or size if special mesh .

• Type :2000-1J/D shuttleless machine

• width:Max 2000mm

• wire dia :<1.2mm

• Mesh : 4-40mesh/inch PLAIN & 40-200 MESH PLAIN DUTCH

• Speed:40turns /min

• weight : 14000kg

Brief Introduction :

1.Type : open edge -shuttleless machine & closed edge -shuttle machine

2.Width : 1000mm,1200mm,1300mm,1320mm,1600mm,1800mm,2000mm,2500mm,,,etc

3.weaving Type :Plain ,Twill , Plain Dutch,Twill Dutch ,reverse dutch,(two heddle ,threee heddle ,five heddle . )

4.CNC-Character

• warping wire on machine

• warping wire feeding automatically

• weft wire leading automatically trhough rapier & PLC control touch screen

• Three -coiler winding tool ( unlimited )

• braking & warning system

• Easliy adjust the width of mesh within range .

Design : shuttleless , or shuttle , based on customer's weaving mesh requirement .

The material of mesh : stainless steel wire mesh ,brass mesh , .. other filter and sieve mesh

Raoyang County Jinglian Machinery Manufacturing Co., Ltd. is a big and professional company integrating designing ,manufacturing and sales of kinds of wire mesh weaving machinery,established in 1972..

Raoyang County Jinglian Machinery Manufacturing Co., Ltd. is located in the industrial zone of Wugong Town, a famous town in North China.and has been engaged in designing and manufacturing wire mesh weaving machine for about 15 years.Jinglian Machinery has a professional R&D team.The shuttleless weaving machine,heavy duty shuttle less weaving machine (security wire mesh weaving machine),mosquito mesh weaving machine,flatten mesh machine,fiberglass mesh weaving machine ,and expanded metal machine,etc,are all our main products. Now our product sales not only cover the whole china, but also exported to India,Egypt, Germany, Thailand, Thailand, Saudi Arabia,Russia,Turkey,Russia and others countries.

Jinglian Machinery will continue to stick to the spirit of Honest andInnovative,and comstantly provide clients with the high quality product and best services.
