1600mm Heavy Duty Shuttleless Weaving Mesh Machine
Summary
The metal wire net weaving machine is applicable for the industry
of metal wire net weaving, and it can be used to weave mesh nets,
microgroove nets and other nonmetal nets. The products weaved are
widely used in various industries including petroleum, chemical
industry, machinery, and aviation, etc.
Main features
1. We offer foreverTechnology support & spare parts available for
after sales
2. Our engineer is always go abroad to set machine, train local
Engineer, train workers how to weave perfect mesh
3. with many years machine research our machine type - light,
Medium heavy, heavy and big machine for different mesh and thick,
Thin wire
4. Kindly tell the mesh you want to weave with diameter,
Some machine type, it is warping self on machine, no need to buy
Warping machine for Auxiliary equipment: spool form, warping
Machine, spare shaft, lift, also with heddle, reed, spring, nylon
Spring
Kindly contact us, we will choose for your machine type
| 1 | It is highly adaptive to metal wires. |
| 2 | It has a large range for adjustment and can weave in various
patterns including plain weave, tilted weave, bead pattern, and
tapered contrast microgroove. |
| 3 | The weft wire is linearly led in without any shuttle, the warp line
feeding and take-up are carried out mechanically and automatically,
the opening size is small, and the net surface is flat and orderly
without any defects. |
| 4 | It works automatic stopping and displaying functions at any warp
broken or weft broken. |
| 5 | The whole machine works stably in a low center of gravity and a low
level of noise. |
The Technical Parameters of the Wire Mesh Weaving Machine
| Model | Width
MM | Opening density
(Mesh) | Wire diameter(mm) | Rotating speed
of crank shaft (r/minute) | Motor power(KW) | Weight(T) | Outside size(mm) |
| ZWJ1300B | 1300 | 60-350 | 0.01-0.14 | 72 | 2.2KW380V,50HZ | 3.25 | 2650x2900x1300 |
| ZWJ1300D | 1300 | 16-120 | 0.14-0.30 | 72 | 2.2KW380V,50HZ | 3.25 | 2650x2900x1300 |
| ZWJ1600B | 1600 | 60-350 | 0.01-0.14 | 72 | 2.2KW380V,50HZ | 3.25 | 2650x2900x1300 |
| ZWJ1600D | 1600 | 16-120 | 0.14-0.30 | 72 | 2.2KW380V,50HZ | 3.25 | 2650x2900x1300 |
| ZWJ-1300/1600 Heavy machine | 1300/1600 | 2-16 | 0.1-0.55 | 40 | 5.5KW380V,50HZ | 8-16 | 3500x4200x2500 |

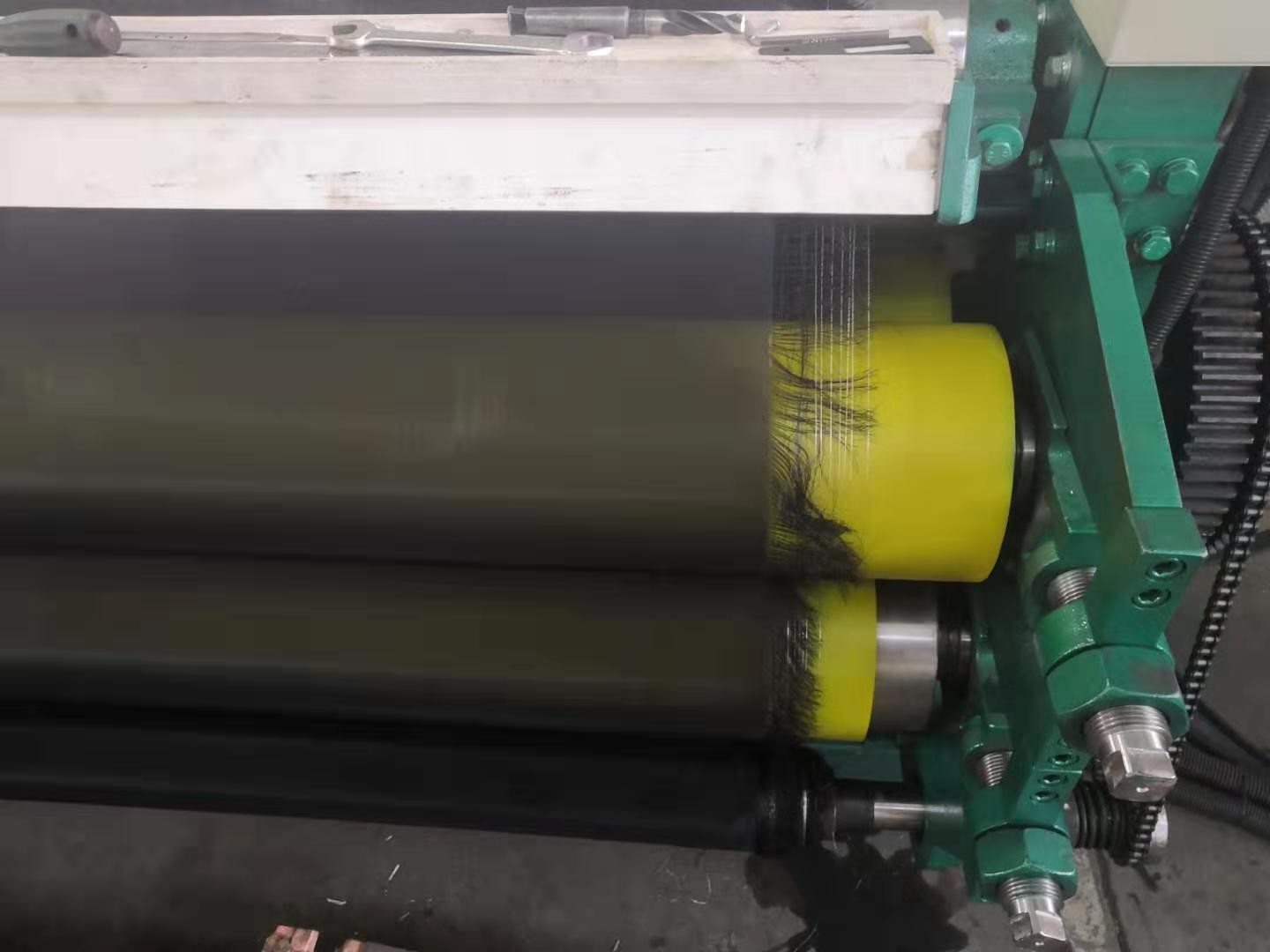

The Picture of the Wire Mesh Weaving Machine
