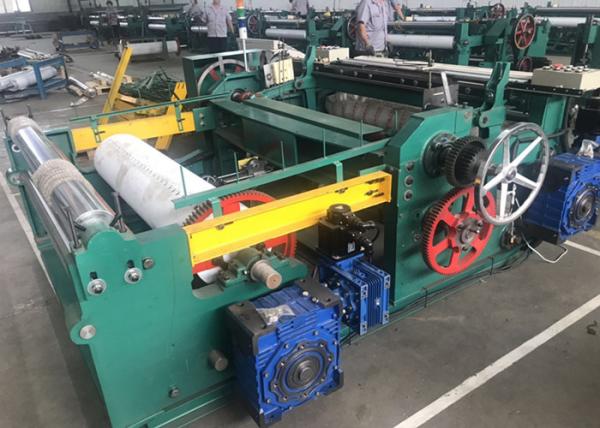

Easy Maintenance Shuttleles CNC Full-Automatic Wire Mesh Weaving Machine For SS Wire Mesh Weaving

1 Full-Automatic stainless steel weaving loom , wire mesh weaving machine:

Standard width: 1000mm,1300,1600,2000mm

Wire diameter range:0.03-0.3mm

Weaving Density: Plain weave square hole 40-400 mesh, Twill weave<600 meshes

Speed :100(120 special design) RPM

Frequency converter step-less speed regualton, the actual speed depends on the weaving width and detailed sepcifications

Basic tension: 15000N/m

Single electromotor driving
Automatic compensation of winding and was feeding
It stopped automatically when the latitude and longitude is cut off
Be suitable for soft ferrous metal, stainless steel, flexible brass
Five kinds of arbitrary combinatio

2 :Instruction of the stainless steel wire mesh loom

3: The weaving wire types:

Stainless steel wire

Iron Wire

Copper wire

Brass Wire

Phosphor copper

Aluminum

Platinum

And other non-metal wire such as polyester, Plastic , etc

4 :The details of the stainless steel wire mesh weaving machine

Raoyang County Jinglian Machinery Manufacturing Co., Ltd. is a big and professional company integrating designing ,manufacturing and sales of kinds of wire mesh weaving machinery,established in 1972..

Raoyang County Jinglian Machinery Manufacturing Co., Ltd. is located in the industrial zone of Wugong Town, a famous town in North China.and has been engaged in designing and manufacturing wire mesh weaving machine for about 15 years.Jinglian Machinery has a professional R&D team.The shuttleless weaving machine,heavy duty shuttle less weaving machine (security wire mesh weaving machine),mosquito mesh weaving machine,flatten mesh machine,fiberglass mesh weaving machine ,and expanded metal machine,etc,are all our main products. Now our product sales not only cover the whole china, but also exported to India,Egypt, Germany, Thailand, Thailand, Saudi Arabia,Russia,Turkey,Russia and others countries.

Jinglian Machinery will continue to stick to the spirit of Honest andInnovative,and comstantly provide clients with the high quality product and best services.
