    Easy Operation Full CNC Wire Mesh Manufacturing Machine Tilted / Bead Woven Type

    Ask Lasest Price
    Brand Name : JingLian
    Model Number : ZWJ---1300 D
    Certification : CE
    Payment Terms : T/T, L/C
    Supply Ability : 100 sets per month
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    Easy Operation Full CNC Wire Mesh Manufacturing Machine Tilted / Bead Woven Type

    Full CNC Shuttleless Weaving Machine For 20--140 Mesh


    The shuttleless weaving machine is one of the wire mesh machines. It can weave a certain range of wire or plastic wire. According to the requirements of the woven wire mesh, we have developed four types of shuttleless mesh machines: Type, d type, KD type, heavy duty. It is divided into 1000, 1300, 1600, 1800-2600mm wide mesh width shuttleless mesh machine models.


    Features:


    1. single electromotor driving

    2. Automatic compensation of winding and was feeding

    3. High adaptability to metal wire.
    4. It adopts shuttleless straight line weft insertion weaving and mechanical automatic let-off and take-up, has small opening amount and smooth wire side, can weave microgroove mesh without bright spot or bright channel and produce high-grade screen mesh, and conforms to national standard.
    5. Low center of gravity, good stability, low noise, less energy consumption, high efficiency
    6. Reasonable design, simple structure, convenient operation, easy regulation and repair

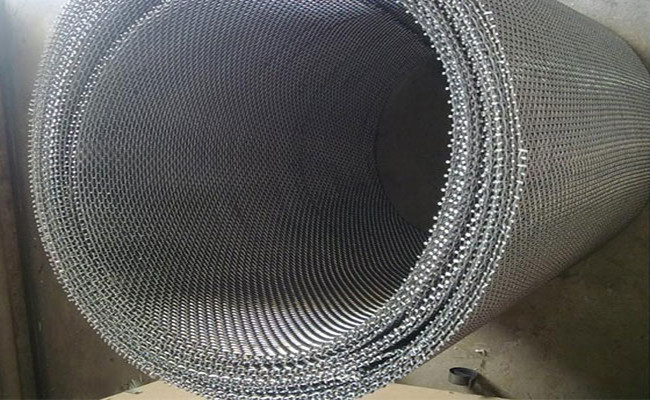

    7. Large adjusting range: Weave 20-140 mesh square hole mesh or 400 mesh special mesh with various lines, such as plain weave, twilled weave, satin weave, taper contrast thick mesh weaving, superior to other models


    product information


    The width of mesh(mm)Dimension(mm)Motor(kw)Weight(kg)
    13002500X2000X15002.22000
    16002800X2000X15002.22100
    20003200X2000X15002.22200
    21003500X2500X17002.22300
    22004000X2500X17002.22400
    23004200X3000X18002.22500
    26004500X3000X18005.52600

    product
