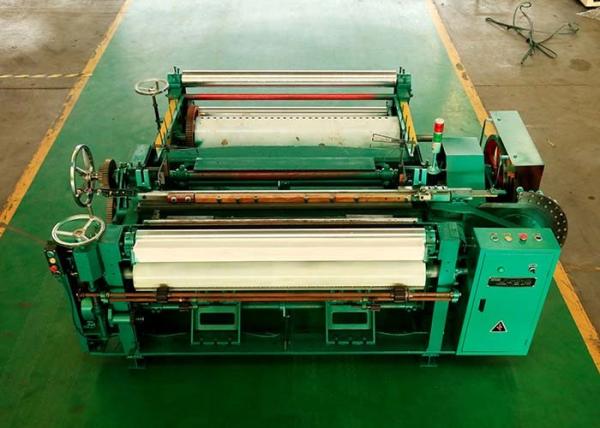

1600MM Light-duty Wire Mesh Weaving Machine ZWJ-1600B

Description:The wire mesh machine is applicable for the industry of metal wire net weaving, and it can be used to weave mesh nets, microgroove nets and other nonmetal nets. The shuttleless shaft is used for linear weft insertion and wire per-bending molding, and weft embossing and weaving are completed simultaneously. The operation is simple, the operation is stable, and the production efficiency is high. It is suitable for weaving mesh with small and medium wire mesh and irregular metal wire mesh. It can weave a crimping net with a width of 1.3m-2.6m, a weaving tightness of 20-140 mesh and a wire diameter of 0.1mm-0.35mm. The products weaved are widely used in various industries including petroleum, chemical industry, machinery, and aviation, etc.

Main features

• It is highly adaptive to metal wires.
• It has a large range for adjustment and can weave in various patterns including plain weave, tilted weave, bead pattern, and tapered contrast microgroove.
• The weft wire is linearly led in without any shuttle, the warp line feeding and take-up are carried out mechanically and automatically, the opening size is small, and the net surface is flat and orderly without any defects.
• It works automatic stopping and displaying functions at any warp broken or weft broken.
• The whole machine works stably in a low center of gravity and a low level of noise.

Main machine technical parameters of The Light-duty Wire Mesh Weaving Machine:

Main machine technical parameters of 1600 Series Wire Mesh Weaving Machine Manufacturer

Our Services:Provide installation and commissioning services abroad, one year warranty, the warranty period there were problems, at any time to repair.
