Full CNC Type Light-duty Wire Mesh Weaving Machine ZWJ-1600B1
The Intrudution Of Jinglian Machinery
Raoyang Jinglian is a professional wire mesh weaving machine located in Rayoyang
County, the manufacter is facousd on the wire mesh machine making
for more than 10 tens, With the professional technical worker and
the update techinolgy, We share the 40% market of the local market,
Now we are exporting our stable machine to overseas to help our
customers to take the wire mesh market, During the time , We
gathered a good reputation, That's make us more cofindent to give
the best products and after-sale service to our customer.
The wire mesh machine producing the wire mesh which is highly
adaptive to metal wires,It has a large range for adjustment and can
weave in various patterns including plain weave, tilted weave, bead
pattern and tappered contrast microgroove
The wire machine works automatic stopping and displaying functions
at any warp broken or weft broken, The whole machine works stable
in a low center of gravity and a low level of noise.
The type of ZWJ-1300B weaving machine is an improvement based on
type 1300A weaving machine to satisfy the user's requirements,as
some of the parts are rebuilted,Type B machine is especially
improved in the rigidity when comparing with typeA machinem the ths
it is more suitbale for weaving with wires in larger diameter.
The Appllication of the Wire Mesh Weaving Machine
Mainly used in filter industry and screen window
The light-duty metal wire net weaving machine is applicable for the
industry of metal wire net weaving, and it can be used to weave
mesh nets, microgroove nets and other nonmetal nets. The products
weaved are widely used in various industries including petroleum,
chemical industry, machinery, and aviation, etc.
Product Details:
| Model Number: | ZWJ--1600B1 | Power(W): | 2.2KW |
| Dimension(L*W*H): | 2.6m*3.1m*1.4m | Weight: | 2900KG |
| Wire Diameter: | 0.025--0.2 mm | Mesh Width: | 1600mm |
| Mesh Size: | 40-400mehs/inch | Beating-up Frequency: | 70-120 r/min |
| Warranty: | 1 Years | Color: | Green or Requirement |
| Certification: | ISO9001 | Condition: | New |
| Production Capacity: | 100sets / Month | Place of Origin: | Hebei, China (Mainland) |
| Packaging Details: | Wooden Case | Port: | Xingang Tianjin |
| After-sales Service Provided: | Engineers Available To Service Overseas |
Description:

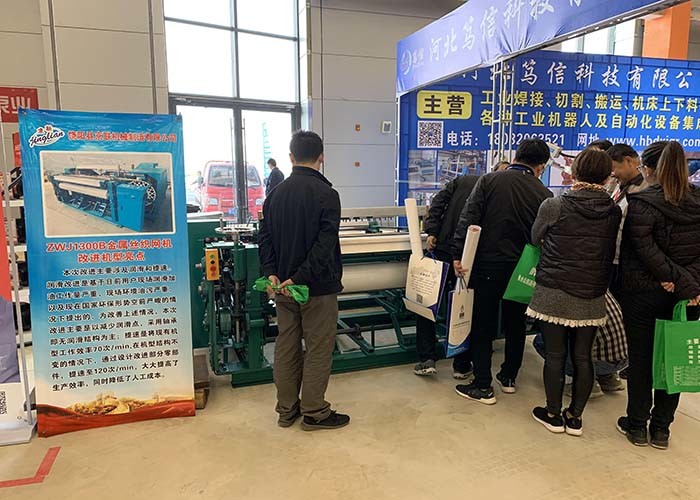

Zwj1300B1 is a modification of 1300B, which is mainly related to
lubrication and acceleration. The improvement of lubrication is
based on the serious situation that the user's on-site lubrication
and refueling work is serious, the on-site oil pollution is
serious, and the national environmental protection form is
unprecedentedly serious. In order to improve the above situation,
the improvement is mainly to reduce the lubrication point, and the
bearing is mainly a non-lubricating mechanism,acceleration is to
increase the efficiency of the machine model to 70 times per
minute. In the case that the machine model structure remains
unchanged, by replacing some components, the speed of 120 times per
minute can be achieved, thereby greatly improving production
efficiency and reducing labor costs.
Main features:1.It is highly adaptive to metal wires.2.It has a large range for
adjustment and can weave in various patterns including plain weave,
tilted weave, bead pattern, and tapered contrast microgroove.3.The
weft wire is linearly led in without any shuttle, the warp line
feeding and take-up are carried out mechanically and automatically,
the opening size is small, and the net surface is flat and orderly
without any defects.4.It works automatic stopping and displaying
functions at any warp broken or weft broken.5.The whole machine
works stably in a low center of gravity and a low level of noise.
Main machine technical parameters of The Light-duty Wire Mesh Weaving Machine:
| TYPE | ZWJ-1300B1 | ZWJ-1600B1 | ZWJ-2100B1 |
| MESH SIZE | 40-400mesh/inch | 40-400mesh/inch | 40-400mesh/inch |
| WIRE DIAMETER | 0.025-0.200mm | 0.025-0.200mm | 0.025-0.200mm |
| BEATING-UP FREQUENCY | 70-120 r/min | 70-120 r/min | 70-120 r/min |
| MESH WIDTH | 1300mm | 1600mm | 2100mm |
| MOTOR POWER | 2.2kw | 2.2kw | 2.2kw |
| OVERALL SIZE | 2.6m*2.8m*1.4m | 2.6m*3.1m*1.4m | 2.6m*3.6m*1.4m |
Main machine technical parameters of 1600 Series Wire Mesh Weaving Machine Manufacturer
| Item | Weaving Width(mm) | Wire Diameter(mm) | MeshSize(mm) | Power(v) | WeavingSpeed (T/Min) | WeaveType |
| 1600B | 1600 | 0.025-0.2 | 40-400 | 380V2.2KW | 60-90 | Plain and Twill |
| 1600D | 1600 | 0.1-0.35 | 20-140 | 380V2.2KW | 60-90 | Plain and Twill |
